Self-propelled Road Widening Machine
EQUIPMENT INTRODUCTION

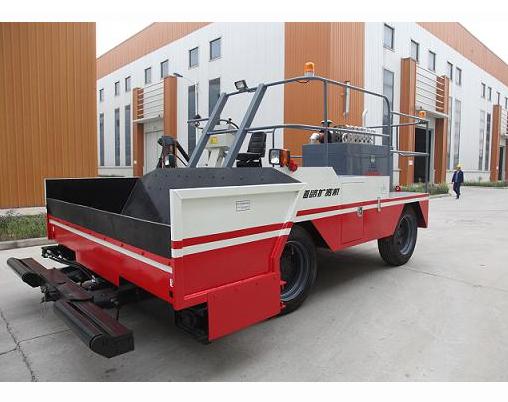

DK1800 self-propelled road broader, a kind of specially designed right side paver, is mainly used for paving basic materials and asphalt mixture to widen the existed high-graded asphalt pavement, township roads and village road. Main features
PERFORMANCE INTRODUCTION
-
1
Strong power and reliable steering mechanism enabled the truck to working on potful and rutting roads;
-
2
The conveyor capacity of belt can be adjusted continuously to meet different width requirements;
-
3
Can be used road paving work with clay, gravel, and asphalt mixtures;
-
4
The paving width can be changed in no time to adapt to the changes of road width;
-
5
The scraper mechanism is adjustable, which can be used for construction outside of kerbstone and for different width;
-
6
The angle of scraper mechanism is adjustable and can be applied for road construction of different arch;
-
7
Two-shift transmission is designed in the driving system, which enabled the flexible adjusting between working speed and driving speed;
-
8
Full hydraulic steering system is of great flexible;
-
9
Static hydraulic brake and drive axle built-in brakes ensured the safety and reliability of braking system;
-
10
Telescopic drive roller can match with a variety of dump trucks;
-
11
Side-sited control console with open eye shot improved the operation safety;
-
12
less labor required to reduce the construction cost;
TECHNICAL PARAMETERS
|
Model |
DK1800 |
Working Width（m） |
0.4~1.8 |
|
Working Depth（mm） |
+250~-150 |
Working Speed（m/min） |
0~50 |
|
Travel ling Speed（km/h） |
0~14.2 |
Conveyor Max Productivity（t/h） |
300 |
|
Loading Ramp Angle（°） |
10 |
Push Roller Extendable Distance（mm） |
450 |
|
Hopper Capacity（m3） |
1.8 |
Total Weight（kg） |
6150 |
|
Overall Dimension (L×W×H) |
5420×3000×2520 |
Engine Power（kW） |
60 |
